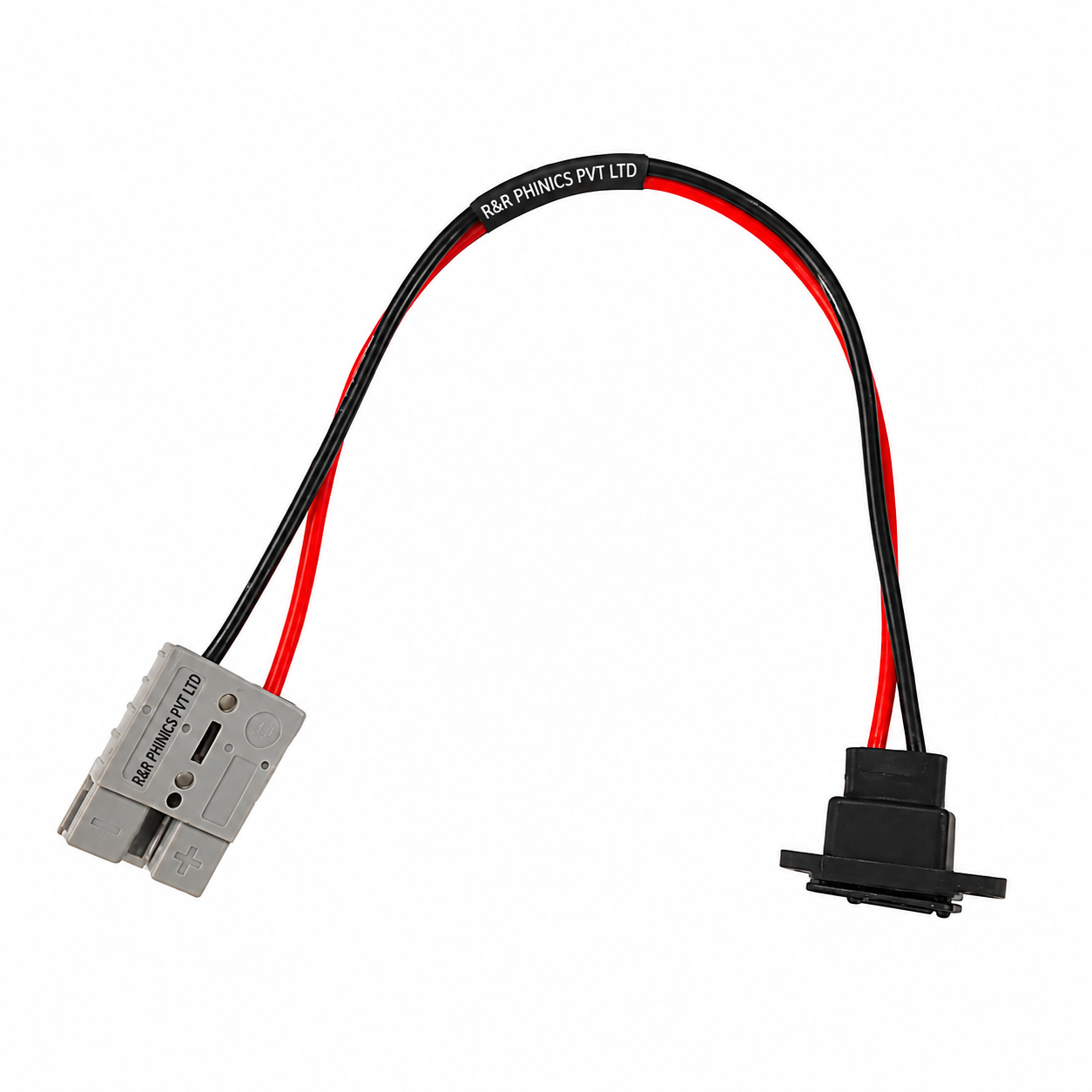

QY SB 50+3 PIN CHARGING SOCKET

The 3-pin charging socket complements the SB50 connector by providing a standardized interface for charging applications.

Key Features

• Standardized Interface: The 3-pin configuration ensures compatibility with various charging systems, facilitating seamless integration into existing setups.
• Secure Connection: Designed to provide a firm and stable connection, the charging socket minimizes the risk of accidental disconnections during the charging process.
• Durable Materials: Constructed from high-quality materials, the socket offers resistance to wear and environmental factors, ensuring long-term reliability.

Specifications

• Connector Type: 3-Pin Charging Socket
• Current Rating: 50A
• Voltage Rating: 600V
• Housing Material: Typically high-grade plastic or metal
• Mounting Style: Panel mount with screw terminals

Applications in Electric Vehicles

Integrating the SB50 Connector with a 3-Pin Charging Socket is particularly beneficial in electric vehicle applications:

• Battery Charging: Provides a reliable interface between the EV's battery system and external charging equipment, ensuring efficient and safe energy transfer.
• Power Distribution: Facilitates the distribution of power from the battery to various subsystems within the vehicle, enhancing overall performance.
• Accessory Integration: Enables the connection of auxiliary devices and accessories, expanding the functionality of the electric vehicle.

Installation and Maintenance

Installation Steps:

1. Preparation: Ensure that all components are compatible with your system's specifications. Disconnect any power sources before beginning the installation.
2. Mounting the Charging Socket: Securely mount the 3-pin charging socket onto the desired panel or surface using appropriate hardware. Ensure that the mounting location is accessible and provides adequate ventilation.
3. Wiring the Socket: Connect the charging socket's terminals to the corresponding wires, adhering to the manufacturer's wiring diagram and ensuring correct polarity. Use appropriate wire gauges to handle the expected current load.
4. Integrating the SB50 Connector: Attach the SB50 connector to the corresponding wires, ensuring secure and proper connections. The genderless design simplifies this process, allowing for straightforward mating with compatible connectors.
5. Testing: After completing the installation, conduct thorough testing to verify that all connections are secure and that the system operates as intended. Check for any signs of overheating or loose connections.

Maintenance Tips:

• Regular Inspection: Periodically inspect all connections, including the SB50 connector and the 3-pin charging socket, for signs of wear, corrosion, or damage. Promptly address any issues to maintain optimal performance.
• Cleaning: Keep the connectors and sockets clean and free from debris. Use a dry cloth or appropriate cleaning tools, avoiding the use of harsh chemicals that could damage the components.
• Secure Connections: Ensure that all connections remain tight and secure. Loose connections can lead to increased resistance, resulting in heat buildup and potential system failures.

Benefits

• Enhanced Reliability: The combination of the SB50 connector and the 3-pin charging socket provides a dependable solution for high-current applications, reducing the risk of connection failures.
• Versatility: Suitable for a wide range of applications beyond electric vehicles, including renewable energy systems, industrial machinery, and backup power systems.
• Safety: The robust design and secure connections minimize the risk of electrical faults, enhancing the overall safety of the system.
