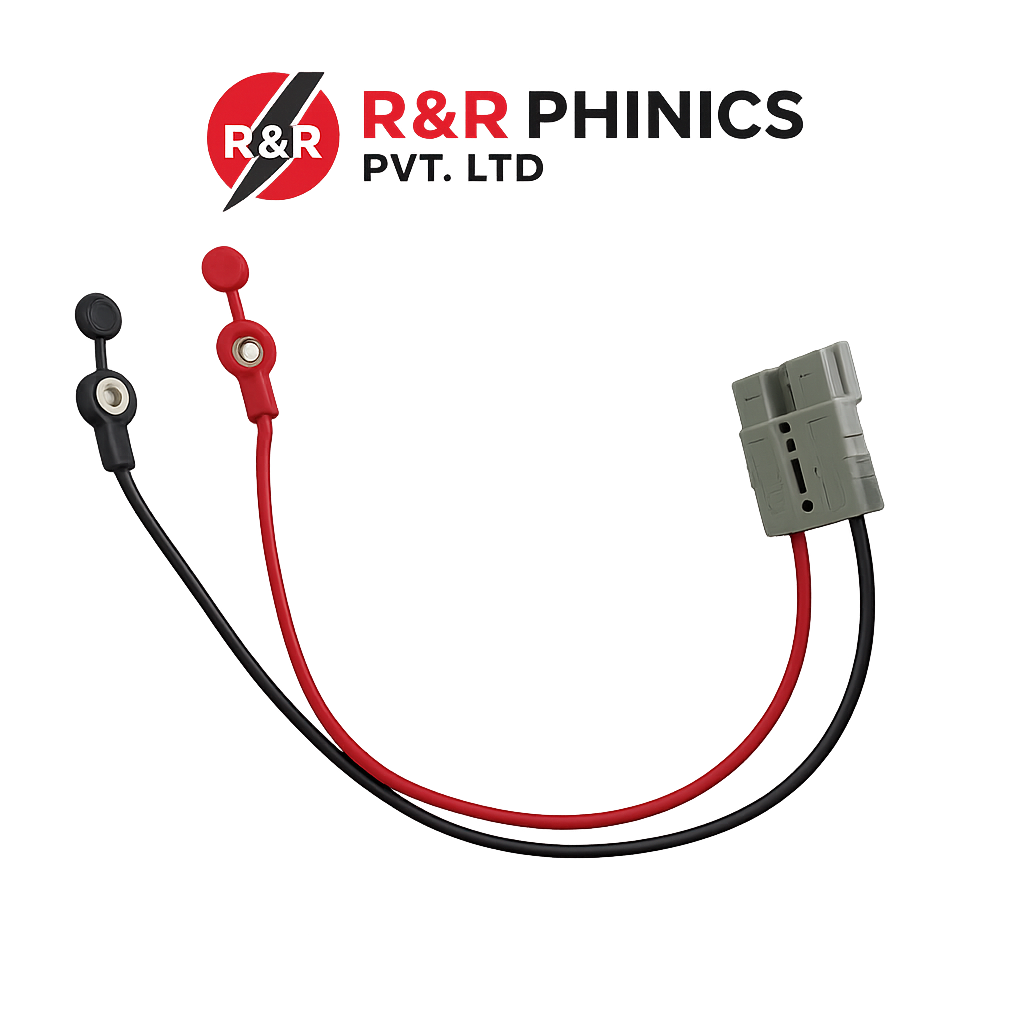

SB 50 WITH BATTERY WIRE
5% Off

SB 50 WITH BATTERY WIRE

In stock

Original price was: ₹150.00.Current price is: ₹143.00.

Key Features

  • High-Quality Connector: The SB50 connector is renowned for its durability and high current-carrying capacity. It is constructed from a polycarbonate/PBT blend, providing excellent mechanical and electrical properties.
  • Pre-Attached Battery Wires: The assembly includes 15 cm DC cables, simplifying installation and reducing the need for additional wiring.
  • High Current and Voltage Ratings: The connector is rated for up to 50 amps of continuous current and supports voltages up to 600 volts AC/DC, making it suitable for high-power applications.
  • Versatile Wire Compatibility: Designed to accommodate wire sizes ranging from 16 AWG to 8 AWG (1.3 mm² to 8.4 mm²), offering flexibility for various wiring requirements.
  • Operating Temperature Range: Capable of operating within a temperature range of -20°C to 105°C, ensuring reliable performance in diverse environmental conditions.

Applications in Electric Vehicles

In the electric vehicle industry, the SB50 Connector with Battery Wire serves several critical functions:
  • Battery Connections: Provides secure and efficient connections between battery packs and the vehicle's electrical system, ensuring reliable power delivery.
  • Charging Systems: Facilitates safe and consistent connections between the EV and charging equipment, supporting efficient charging processes.
  • Accessory Power: Supplies power to auxiliary components such as lighting systems, infotainment units, and other electronic accessories within the vehicle.

Installation and Maintenance

Installation Steps:
  1. Preparation: Ensure that the power source is disconnected before installation. Verify that the connector assembly is compatible with your system's requirements.
  2. Connecting the Wires: The pre-attached battery wires simplify the installation process. Connect the free ends of the wires to the corresponding terminals in your system, ensuring correct polarity and secure connections.
  3. Mating the Connectors: Align the assembled SB50 connector with its mating counterpart and push them together until the locking mechanism engages securely.
Maintenance Tips:
  • Regular Inspection: Periodically inspect the connector and wires for signs of wear, corrosion, or damage. Address any issues promptly to maintain optimal performance.
  • Cleaning: Keep the connector contacts clean and free from debris to ensure reliable electrical connections. Use a dry cloth or appropriate cleaning tools; avoid using harsh chemicals.
  • Storage: When not in use, store the connector assembly in a clean, dry environment to prevent exposure to moisture and contaminants.

Benefits

  • Ease of Use: The pre-attached battery wires and robust connector design simplify installation, reducing assembly time and minimizing the potential for wiring errors.
  • Reliability: High-quality materials and construction ensure consistent performance and longevity, even in demanding applications.
  • Safety: Secure connections and high current-carrying capacity contribute to safe operation in high-power electrical systems.
Category:

Description

The SB50 Connector with Battery Wire is a high-quality electrical connector assembly designed to facilitate reliable and efficient power connections in various applications, including electric vehicles (EVs), battery packs, and industrial equipment. This assembly combines the robust SB50 connector with pre-attached battery wires, ensuring optimal conductivity and performance.
